J .Clark & Company’s range of Hackle Combs and Hackle Bars represent all types of pinning requirements, from ‘U’ shaped ‘Duck-Bill’ pins at 1/6” pins per inch, to the finest 0.40mm Diameter pins at 45 pins per inch.

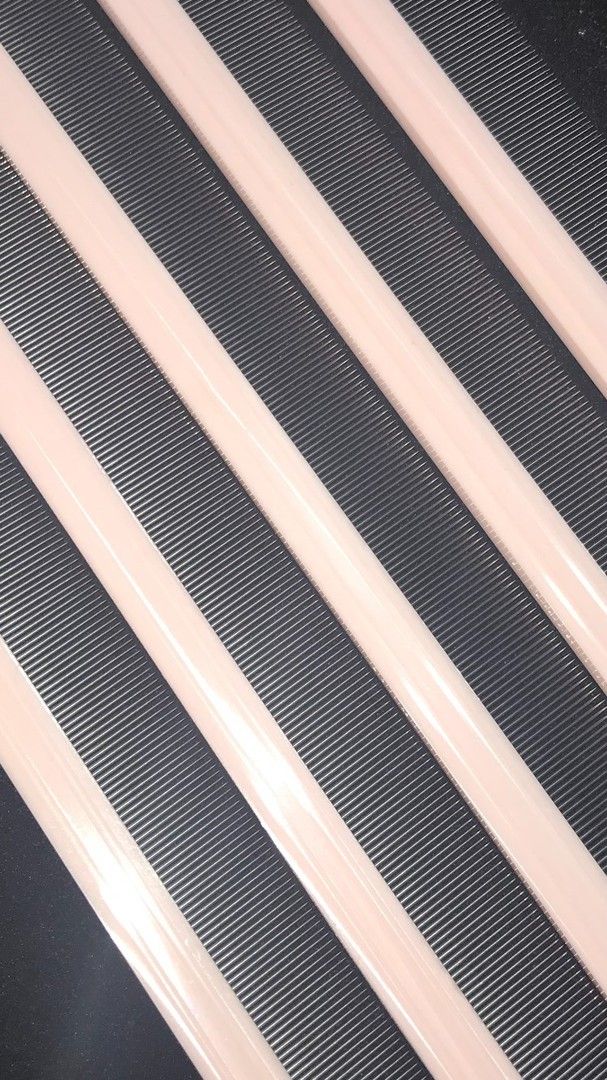

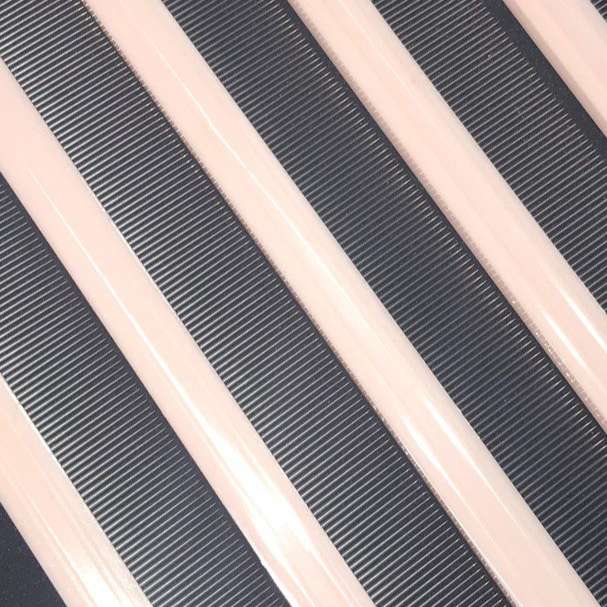

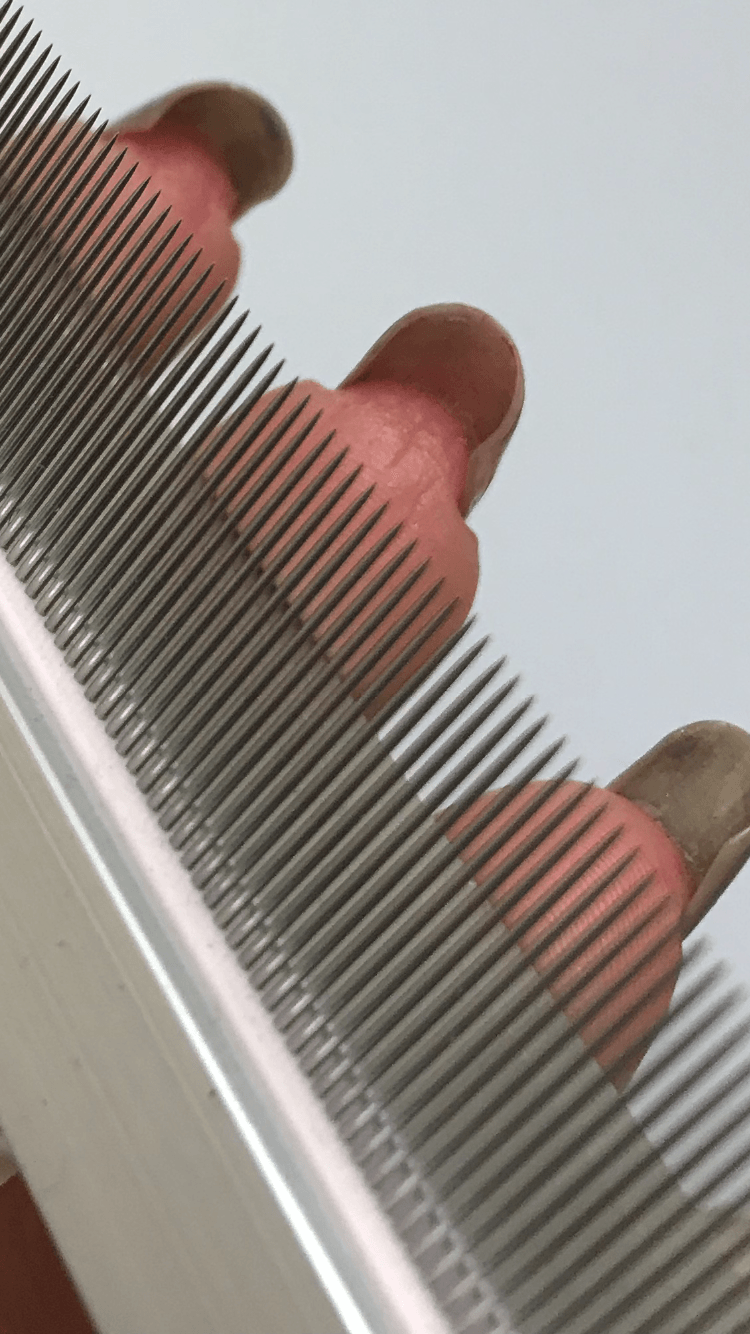

• We manufacture Hackle Combs for traditional machinery, including ‘Mackie’ and the more modern ‘Linimpianti’. We also have tooling for the Samsung & the Chinese Golden Eagle Hackle Frames
  • Drilled & Pinned Aluminium Hackle Stocks, UK Pinned Products, Linimpianti

    • We offer these components in various lengths (08”, 09”, 10”, 11”, 12” and 13”) with alternate Needle Lengths (1”, 1.1/8”, and 1.1/4”), and can supply both round or flat pins.

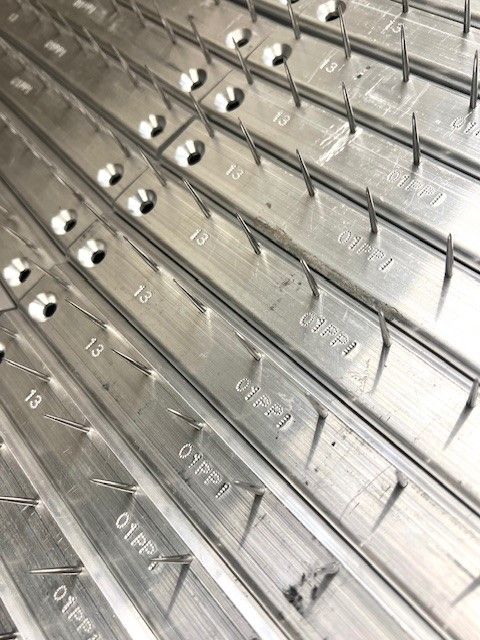

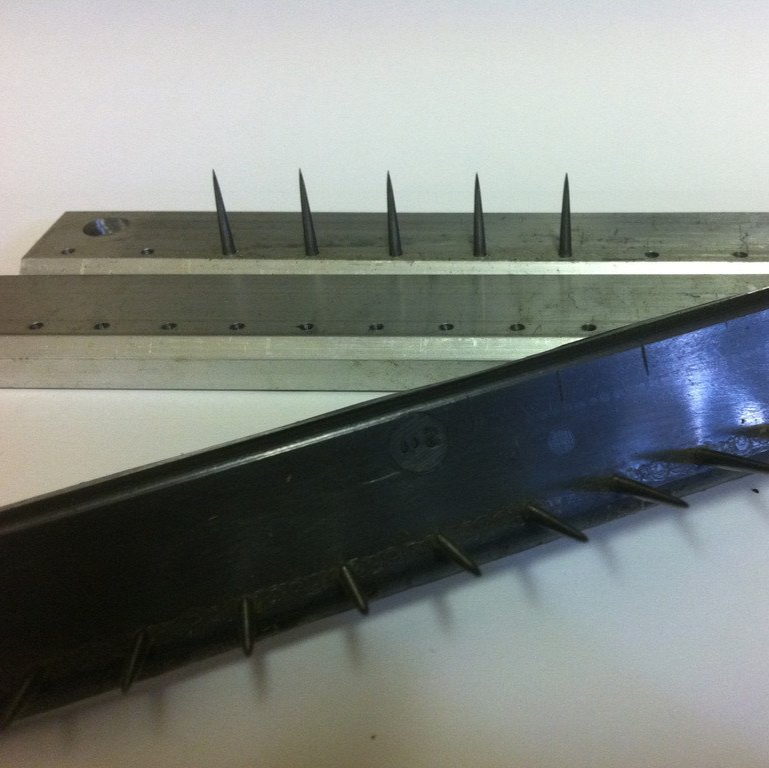

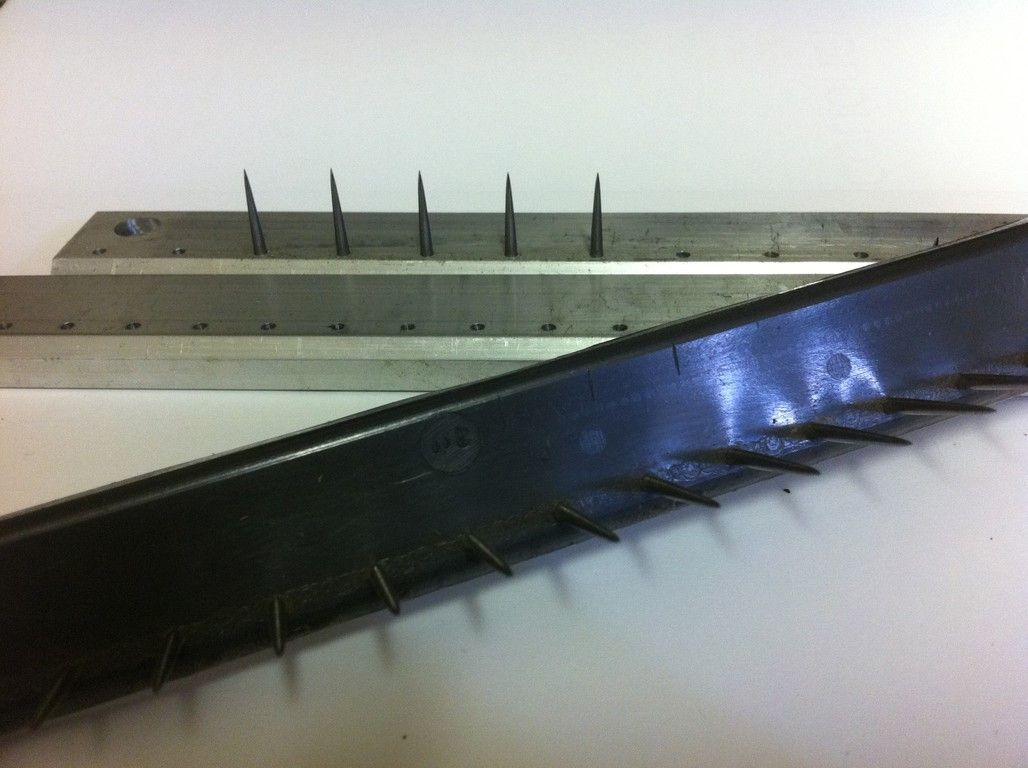

    Usually, we produce Aluminium Hackle Combs and Hackle Stocks for coarse hackling operations (1/6 Pins per Inch To 12ppi) A series of holes are drilled through a solid aluminium body at required density, and needles fitted in order to suit required needle length. This method allows the customer to undertake repairs to broken pins when necessary.

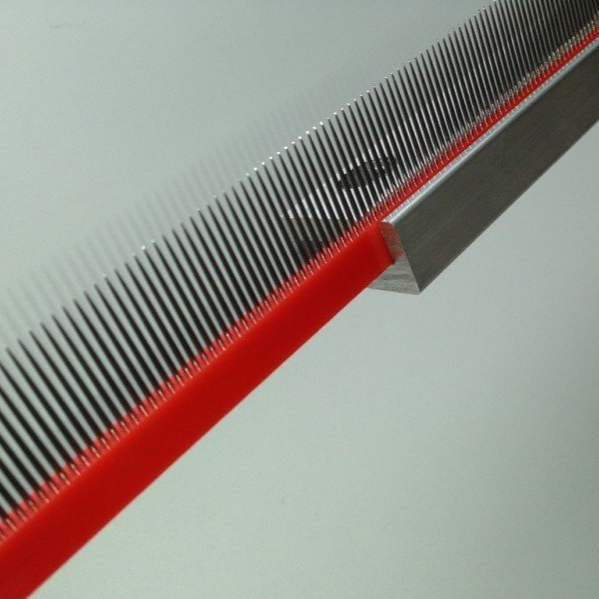

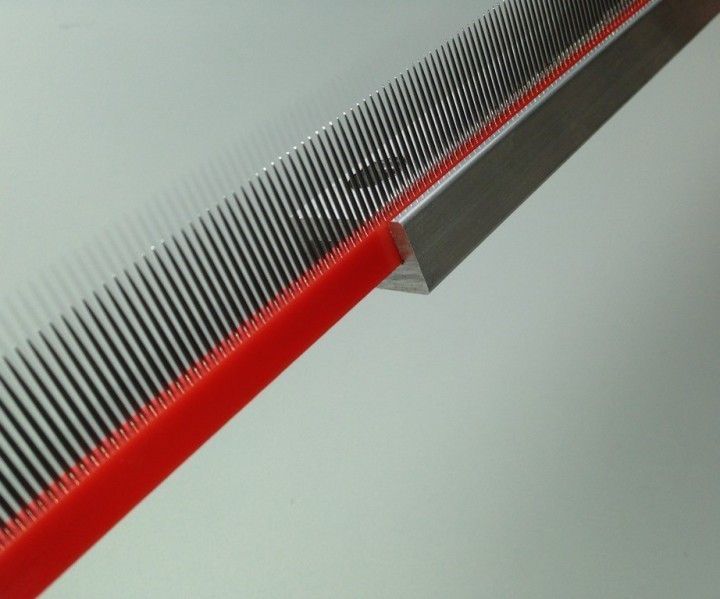

    For finer hackling operations, (14ppi To 45ppi) we recommend our Aluminium Hackle Stocks fitted with disposable nylon inserts.

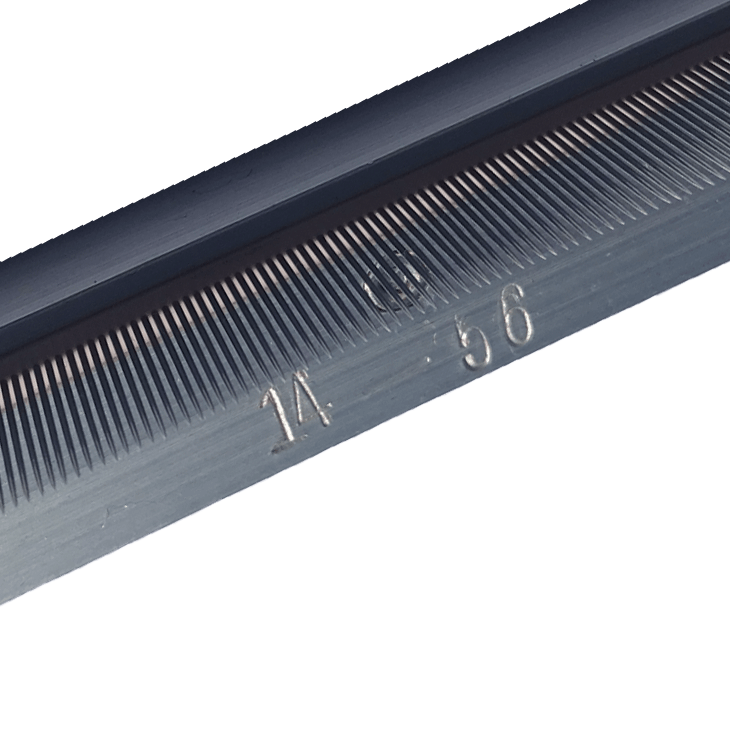

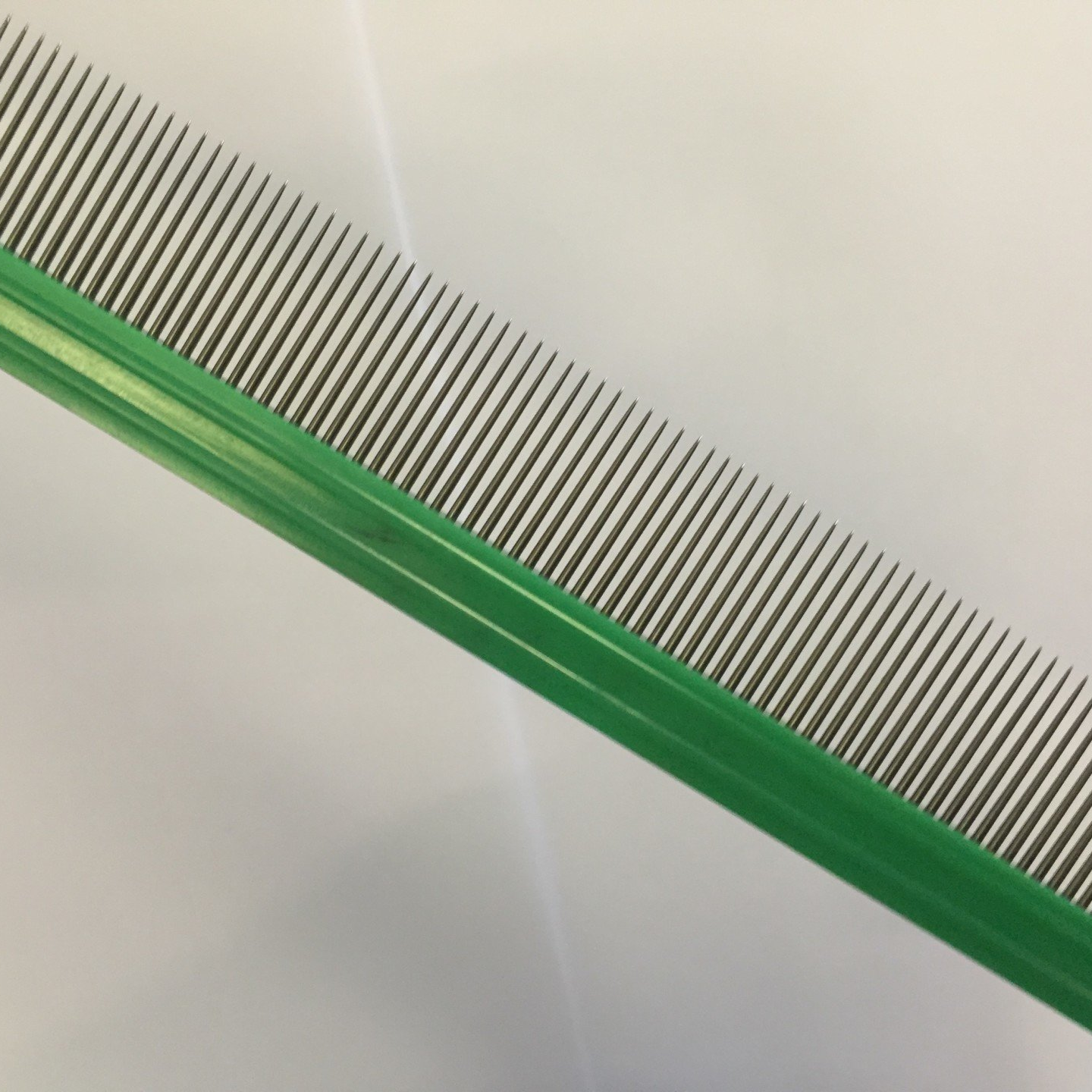

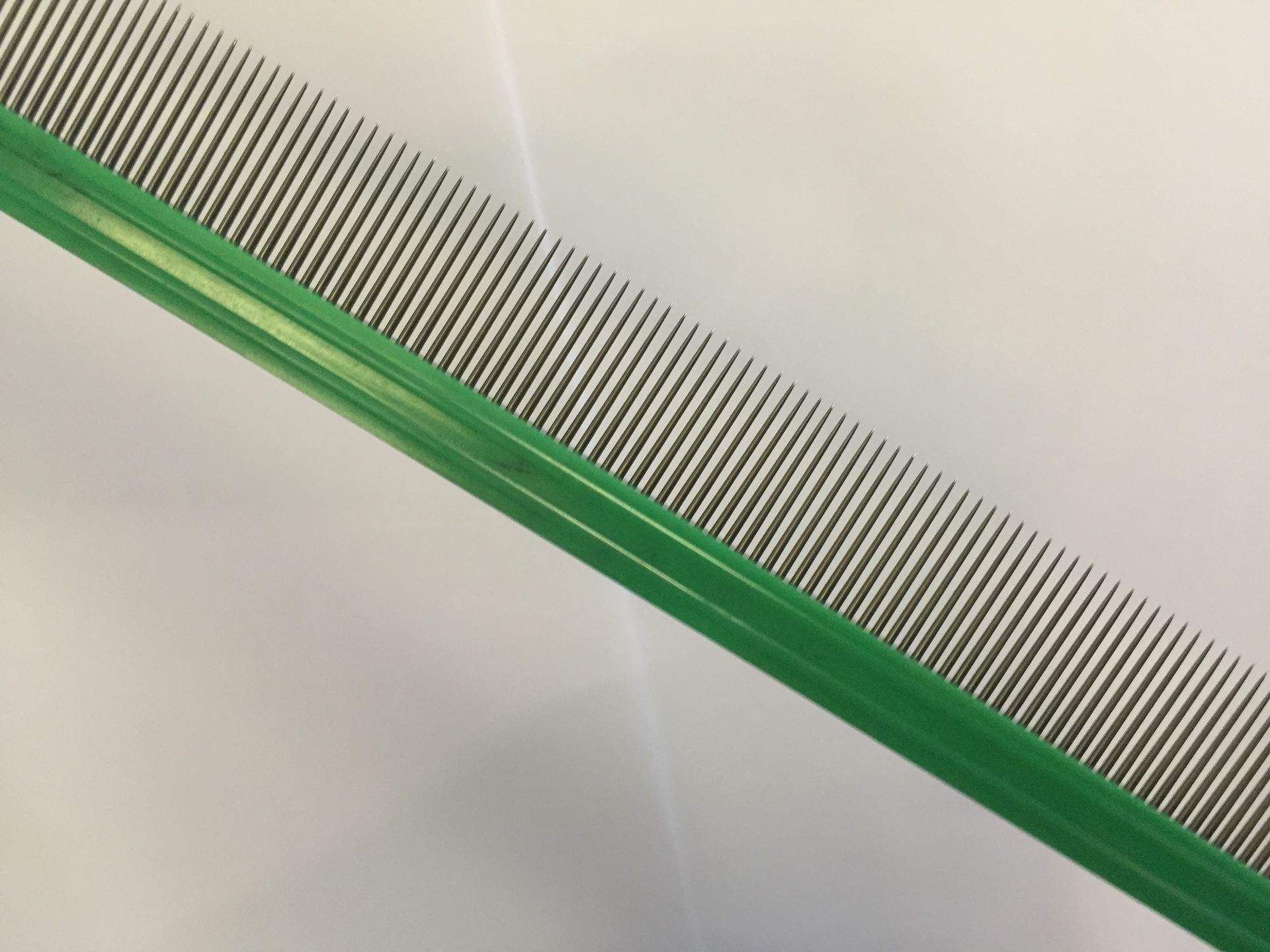

    We manufacture both 'Linimpianti Type Hackles'  the Chinese-Type 'Fx' Hackles and Golden Eagle Pinned Inserts.

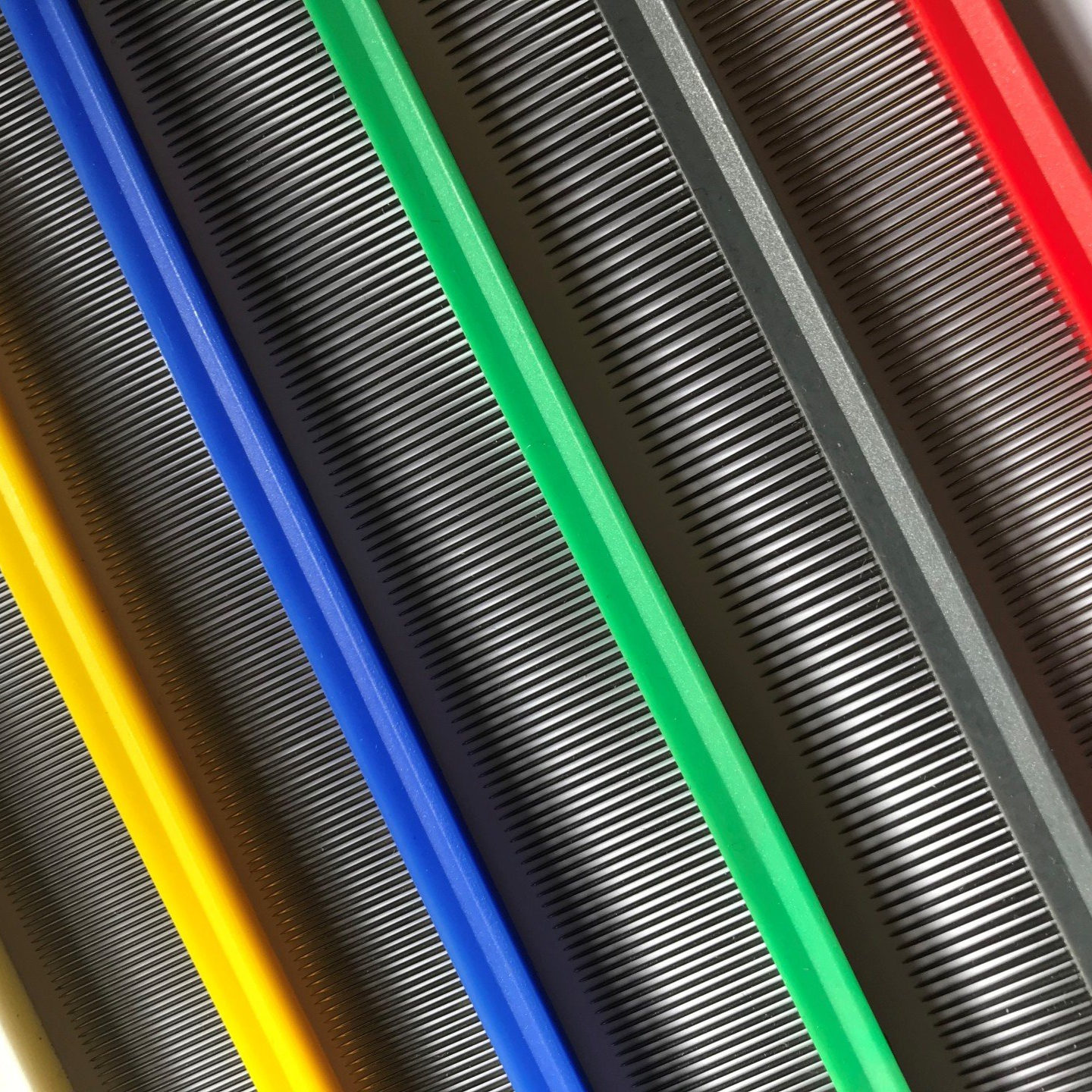

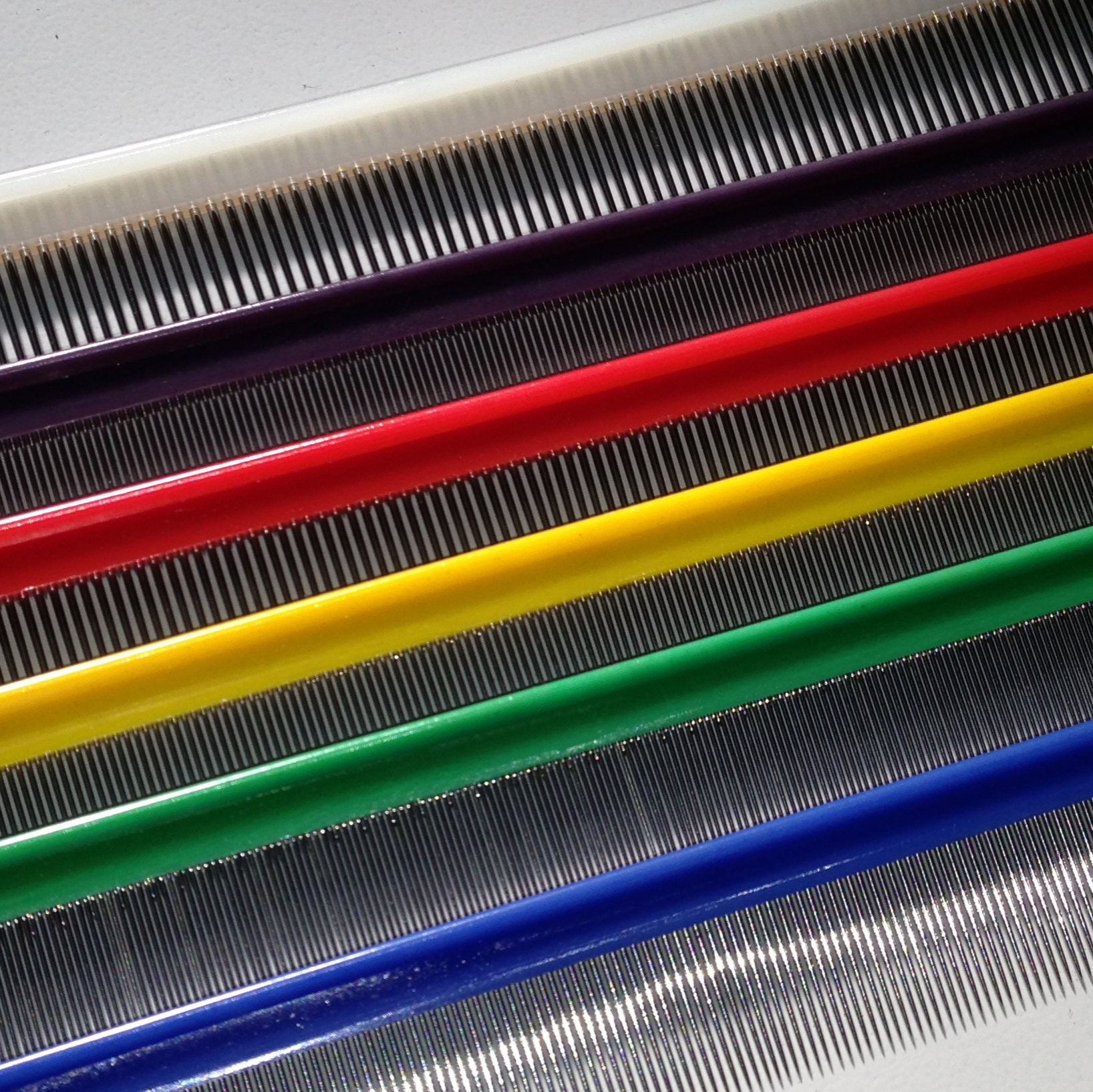

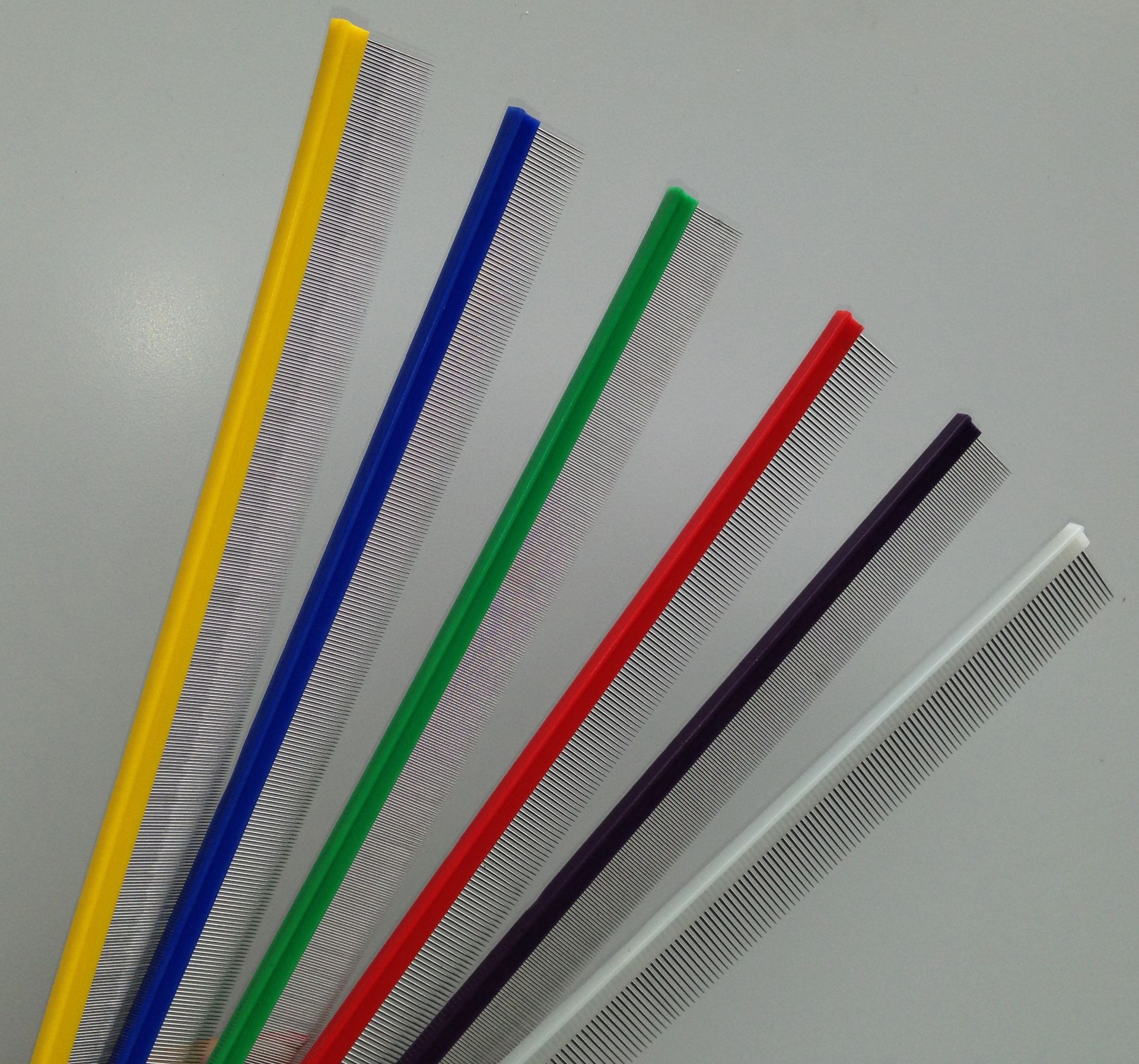

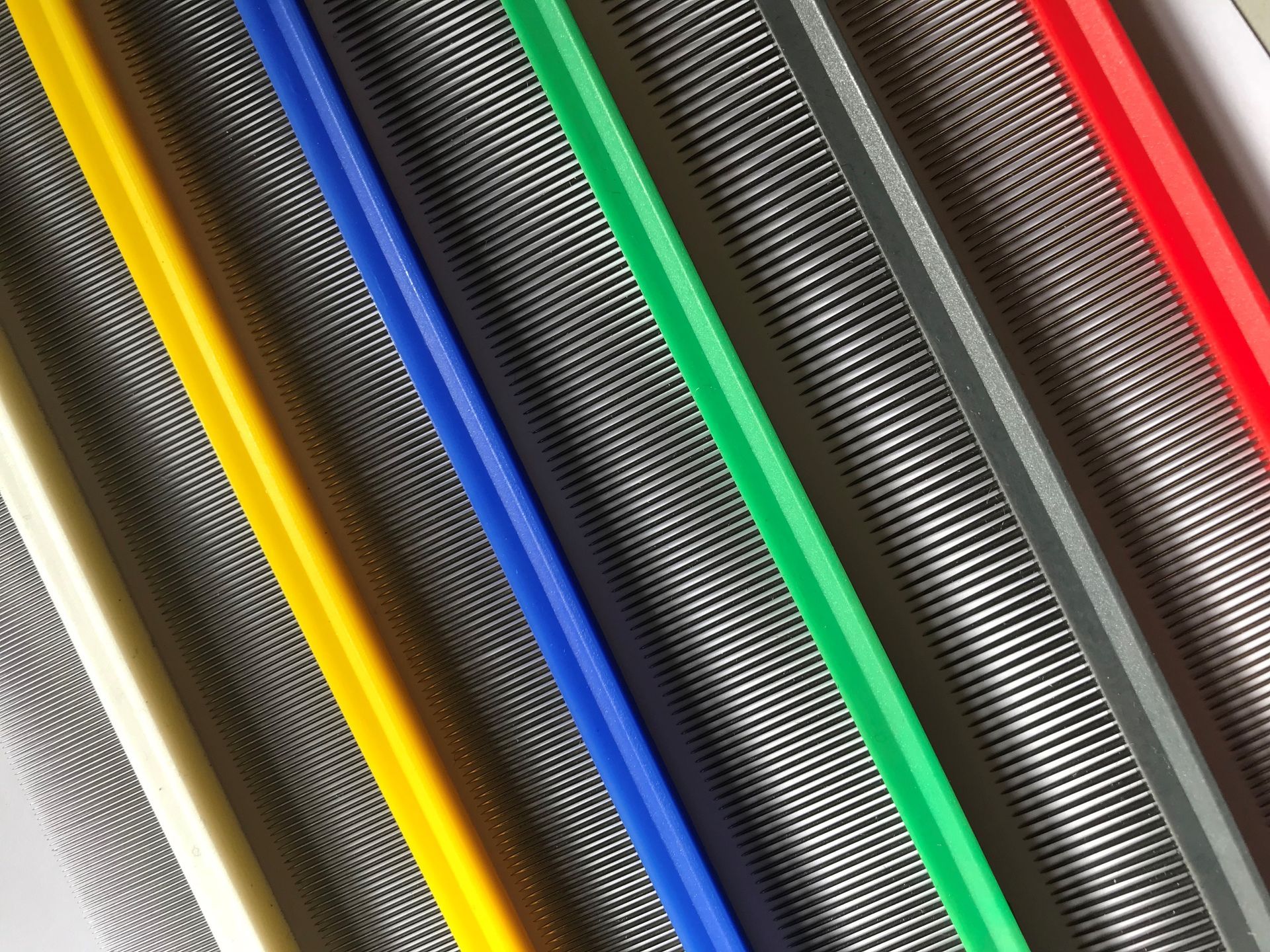

    More often supplied with round pins, we do, however, manufacture using flat pins if preferred. In addition, for colour-coding purposes, we are able to supply in any colour.

    All our hackles are manufactured in England, on site, using only the best quality base materials and superior needles manufactured in Germany to DIN ISO 9904 standard.
